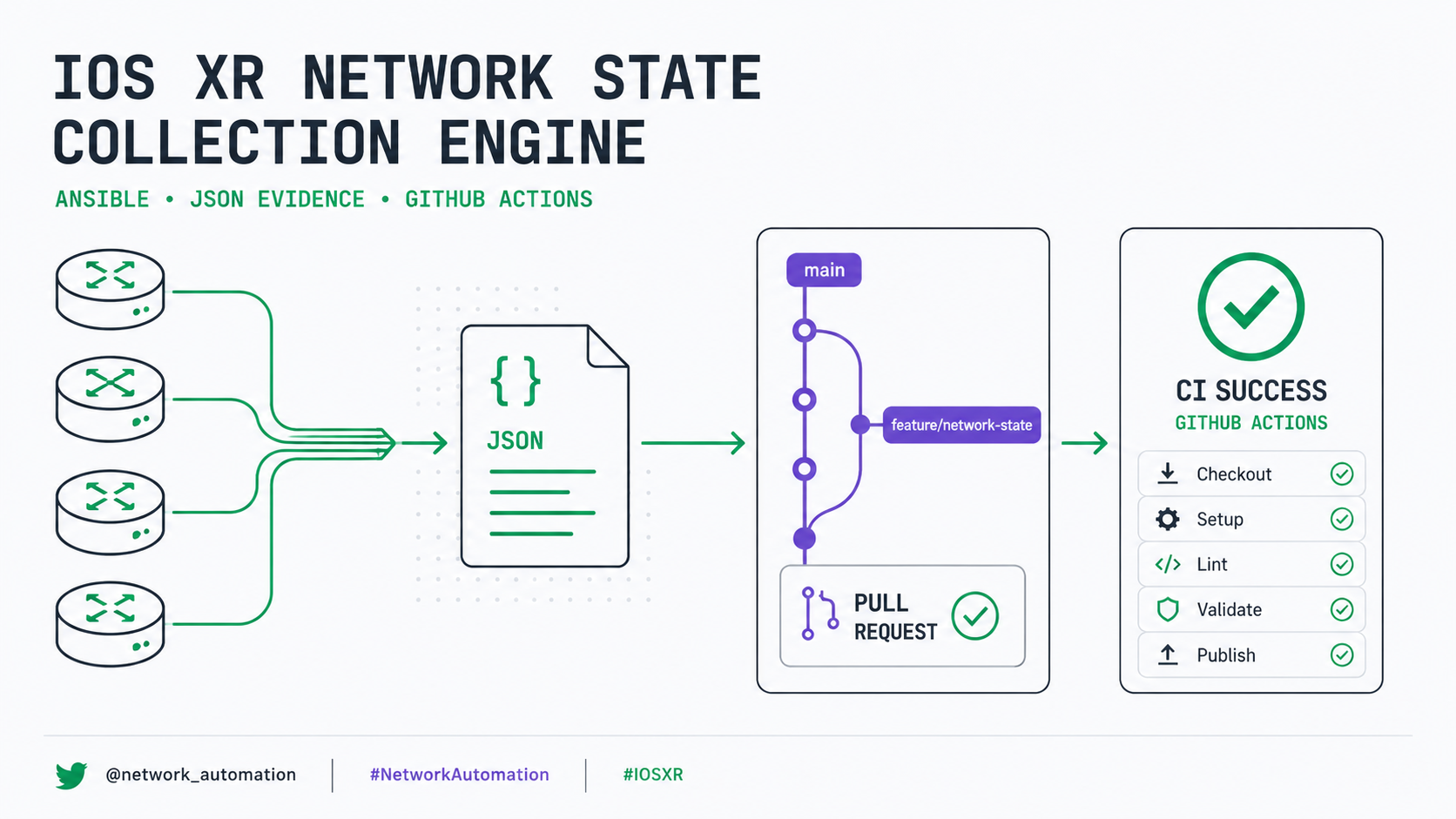

IOS XR Network State Collection Engine

Foundation and Environment

1. General Lab Objective

The objective was to start building this platform:

In this first phase, we implemented only:

The collector:

• Uses only show commands.
• Does not modify configuration.
• Generates evidence per device.
• Distinguishes reachable from unreachable devices.
• Does not stop the entire execution when one router fails.
• Excludes secret lines from the running configuration.
• Stores evidence locally and outside Git version control.

2. Repository Used

The working repository was dfonquet/CCIE-SP-NetOps-Automation. Its local Linux path was ~/netops/CCIE-SP-NetOps-Automation.

cd ~/netops/CCIE-SP-NetOps-Automation

cd means change directory. It changes the terminal's current directory. After running it, every Git, Ansible, and Python command operates on this repository.

3. Topology Included in the Inventory

The inventory was organized under the main iosxr group, with two child groups: p_routers and pe_routers.

13 P / RR / PCE routers
 4 PE routers
-----------------------
17 IOS XR devices

During this work, we specifically added:

PE2:
  ansible_host: 10.255.231.102

PE3:
  ansible_host: 10.255.231.103

The complete inventory uses management addresses inside 10.255.231.0/24.

4. Ansible Connection Variables

The inventory defines these variables at the iosxr group, so they apply automatically to every router:

ansible_connection: ansible.netcommon.network_cli
ansible_network_os: cisco.iosxr.iosxr
ansible_network_cli_ssh_type: libssh
ansible_user: "{{ lookup('env', 'NETOPS_USER') }}"
ansible_password: "{{ lookup('env', 'NETOPS_PASSWORD') }}"

ansible_connection

ansible.netcommon.network_cli tells Ansible that the target is not a normal Linux server. Ansible connects over SSH to the CLI of a network device.

ansible_network_os

cisco.iosxr.iosxr identifies the remote operating system as Cisco IOS XR. This lets Ansible know how to enter the CLI, execute commands, interpret prompts, select collection modules, and handle IOS XR-specific errors.

ansible_network_cli_ssh_type

libssh instructs the connection to use libssh through ansible-pylibssh. This mattered because the incorrect virtual environment did not include that dependency.

User and password

Credentials are not written directly into the inventory. Ansible obtains NETOPS_USER and NETOPS_PASSWORD from operating-system environment variables. This prevents passwords from being committed accidentally to Git.

5. Activate the Correct Virtual Environment

The correct environment was automation/.venv/, not the .venv at the repository root.

source automation/.venv/bin/activate

which python
which ansible

After activation, the prompt shows (.venv):

(.venv) daniel@netlab-core:~/netops/CCIE-SP-NetOps-Automation$

source executes a file inside the current Bash session. Here, it loads the virtual environment's Python, pip, Ansible, and project-specific libraries. The paths returned by which should point to automation/.venv/bin/.

6. The ansible-pylibssh Dependency

We added ansible-pylibssh>=1.4.0 to automation/requirements.txt. It lets network_cli use libssh to connect to the routers.

python -m pip install -r automation/requirements.txt

python -m pip runs pip with the exact active Python interpreter. It is safer than typing only pip, which can install libraries into another Python environment. install requests package installation; -r means “requirements file”; and automation/requirements.txt is the dependency list.

7. Load Credentials Securely

The repository manual documented the credential workflow as follows:

export NETOPS_USER="netops"
read -rsp "NETOPS_PASSWORD: " NETOPS_PASSWORD
echo
export NETOPS_PASSWORD

1. export NETOPS_USER="netops" creates and exports the NETOPS_USER variable. The inventory reads it with lookup('env', 'NETOPS_USER').
2. read -rsp "NETOPS_PASSWORD: " NETOPS_PASSWORD requests the password without displaying it. read accepts terminal input; -r prevents backslash interpretation; -s enables silent mode; -p displays the prompt; and NETOPS_PASSWORD is the variable that temporarily receives the value.
3. echo adds a clean newline after silent input.
4. export NETOPS_PASSWORD makes the value available to child processes such as Ansible.

Verify that the variable exists without displaying it:

test -n "$NETOPS_PASSWORD" && echo "Password loaded"

Do not use echo "$NETOPS_PASSWORD", because that exposes the password on screen.

8. Ansible Configuration

The file used was automation/ansible.cfg:

[defaults]
inventory = inventories/local/hosts.yml
host_key_checking = False
retry_files_enabled = False
stdout_callback = ansible.builtin.default
callback_result_format = yaml
callback_format_pretty = true
timeout = 30

[persistent_connection]
connect_timeout = 60
command_timeout = 90

[paramiko_connection]
use_rsa_sha2_algorithms = false

Callback issue

The previous stdout_callback = yaml was no longer available in the Ansible version used. We replaced it with the official default callback plus callback_result_format = yaml and callback_format_pretty = true, preserving readable YAML output.

9. Use ANSIBLE_CONFIG Explicitly

ANSIBLE_CONFIG=automation/ansible.cfg \
ansible-playbook ...

ANSIBLE_CONFIG=automation/ansible.cfg creates an environment variable only for the command that follows it. It does not permanently change the terminal. The conceptual meaning is: “Run this ansible-playbook with this ansible.cfg file.”

This prevents Ansible from accidentally using /etc/ansible/ansible.cfg, ~/.ansible.cfg, another system file, or configuration belonging to a different project.

10. Create the Collection Engine

The central file created was automation/playbooks/collect-network-state.yml:

---
- name: Collect structured IOS XR network state
  hosts: iosxr
  gather_facts: false

hosts: iosxr runs the playbook over the complete iosxr group, so it can include both p_routers and pe_routers.

Linux servers commonly begin with a generic fact-gathering pass. Network devices do not need that behavior here, so gather_facts: false reduces execution time, avoids unnecessary tasks, and keeps the collector completely explicit.

Collection Engine Internals

11. Unique Run Identifier

collector_run_id: "{{ run_id | default('RUN-MANUAL') }}"

If a run_id variable is supplied, the playbook uses it; otherwise it uses RUN-MANUAL. We created the identifier with:

export RUN_ID="RUN-COLLECT-$(date -u +%Y%m%dT%H%M%SZ)"

export RUN_ID= creates the variable. $(...) executes the command inside the parentheses and inserts its result into the string. date -u produces UTC time, avoiding timezone problems, simplifying evidence comparison, and matching common logging practice.

Example: RUN-COLLECT-20260724T175235Z. Every execution is therefore separated.

12. Evidence Directory

evidence_dir: "{{ automation_dir }}/evidence/{{ collector_run_id }}"

The official pattern is automation/evidence/<RUN_ID>/raw/<DEVICE>.json.

13. Create Directories Automatically

- name: Create collection evidence directories
  ansible.builtin.file:
    path: "{{ item }}"
    state: directory
    mode: "0755"
  loop:
    - "{{ evidence_dir }}"
    - "{{ evidence_dir }}/raw"
  delegate_to: localhost
  run_once: true

• ansible.builtin.file manages files and directories.
• state: directory requires the path to exist as a directory and creates it when absent.
• mode: "0755" gives the owner read/write/execute and the group and others read/execute.
• The loop runs twice: once for automation/evidence/<RUN_ID> and once for its raw directory.
• delegate_to: localhost creates the folder on the Ubuntu Ansible server, not on the IOS XR router.
• run_once: true creates the folder once instead of repeating the task for all 17 devices.

14. Initial Reachability Probe

- name: Probe IOS XR device reachability
  cisco.iosxr.iosxr_command:
    commands:
      - show running-config hostname
  register: device_probe
  ignore_errors: true
  ignore_unreachable: true

show running-config hostname is a small, safe command. It validates host resolution, IP connectivity, the SSH port, SSH negotiation, username, password, CLI access, and IOS XR compatibility.

register: device_probe stores the result in device_probe, which can contain failed, unreachable, stdout, stdout_lines, and msg.

ignore_errors: true lets the playbook continue after a failed command. ignore_unreachable: true also lets it continue when a router cannot be reached. Without both options, one powered-off router could stop collection for the entire network.

15. Calculate Device State

collector_reachable: >-
  {{
    not (device_probe.unreachable | default(false))
    and not (device_probe.failed | default(false))
  }}

A device is reachable only when unreachable = false and failed = false.

16. Commands Collected

The collector executes eight commands.

16.1 Sanitized running configuration

This obtains the router's active configuration. exclude secret prevents lines containing the word secret from being included, reducing the risk of storing hashes or credentials.

The result can include interfaces, routing protocols, BGP, IS-IS, Segment Routing, MPLS, VRFs, route policies, prefix sets, BFD, multicast, and services. This is not a universal Data Loss Prevention solution; evidence must always be reviewed before it is shared.

16.2 Interface summary

This shows configured interfaces, administrative state, operational state, IP address, up/up links, shut interfaces, and interfaces with protocol problems. It provides a base for identifying physical or logical faults.

Interface           IP-Address       Status      Protocol
Gi0/0/0/0           10.0.10.1        Up          Up
Gi0/0/0/1           10.0.20.1        Down        Down

16.3 IS-IS neighbors

This verifies IS-IS adjacencies, System IDs, interfaces, adjacency state, IS-IS level, and hold time. In the backbone, it is essential for validating that the IS-IS underlay remains stable.

Expected: P10 must have 3 IS-IS neighbors
Actual:   P10 has 2
Result:   FAIL

16.4 Global BGP summary

This shows the router ID, AS number, BGP neighbors, session state, received prefixes, and sessions in Idle, Active, or Established.

P12-RR-PRIMARY ↔ PE1 = Established
P12-RR-PRIMARY ↔ PE2 = Established
P12-RR-PRIMARY ↔ PE3 = Established
P12-RR-PRIMARY ↔ PE4 = Established

16.5 BGP VPNv4 summary

This focuses on the VPNv4 Unicast address family. It is especially important for L3VPN, Route Reflectors, VPN route distribution, PE–RR session validation, and VPNv4 NLRI propagation. A global BGP session can be established while the VPNv4 address family is inactive, which is why both BGP commands are collected.

16.6 MPLS forwarding

This displays the LFIB — Label Forwarding Information Base — including local labels, outgoing labels, prefixes, next hops, outgoing interfaces, and push, swap, or pop operations. It is central to validating SR-MPLS, LDP where present, VPN transport, and label-switched path continuity.

16.7 IS-IS Prefix-SIDs

This searches for configuration lines related to prefix-sid. It quickly validates Node-SIDs, Prefix-SID indexes, and Segment Routing configuration under IS-IS. It does not collect the complete IS-IS block; it extracts only SR-relevant lines.

16.8 BFD sessions

This verifies BFD sessions, UP or DOWN state, interfaces, neighbors, multipliers, and timers. BFD commonly protects IS-IS, BGP, core links, fast convergence, TI-LFA, and other fast-reroute mechanisms.

17. Execute Each Command Individually

- name: Collect IOS XR commands individually
  cisco.iosxr.iosxr_command:
    commands:
      - "{{ item }}"
  loop: "{{ collection_commands }}"
  loop_control:
    label: "{{ item }}"
  register: command_results
  ignore_errors: true
  when: collector_reachable

All eight commands could have been sent in one task. Running them individually has an important advantage: if one fails, the results of the other seven are preserved.

show interfaces brief       → success
show isis neighbors         → success
show bgp summary            → success
show bgp vpnv4...           → unsupported command
show mpls forwarding        → success

loop_control.label makes output display the real command, such as item=show bgp summary, instead of unclear loop data. register: command_results stores all results in command_results.results. when: collector_reachable runs the commands only after a successful probe.

18. Generate the JSON File

The final task writes automation/evidence/<RUN_ID>/raw/<DEVICE>.json with ansible.builtin.copy delegated to localhost.

{
  "run_id": "RUN-COLLECT-20260724T175235Z",
  "device": "P10",
  "management_address": "10.255.231.10",
  "status": "collected",
  "probe": {},
  "commands": []
}

19. State Model

The model is documented explicitly in the repository.

Execution, Evidence, and Validation

20. Run the Collector

ANSIBLE_CONFIG=automation/ansible.cfg \
ansible-playbook \
  -i automation/inventories/local/hosts.yml \
  automation/playbooks/collect-network-state.yml \
  --limit "P10,P23-PCE" \
  -e "run_id=${RUN_ID}"

The backslash (\) continues the command on the next line. Without the backslashes, the same command can be written on one line; they only improve readability.

• ansible-playbook executes a YAML playbook.
• -i automation/inventories/local/hosts.yml selects the inventory; -i means inventory.
• automation/playbooks/collect-network-state.yml contains the collection tasks.
• --limit "P10,P23-PCE" restricts the iosxr target to those devices.
• -e "run_id=${RUN_ID}" passes an extra variable; -e means extra vars.

Ansible receives the equivalent of run_id: RUN-COLLECT-20260724T175235Z.

21. Test Scenarios Performed

21.1 Test against P10

--limit "P10"

status: collected
commands: 8
failed commands: 0

This verified SSH connectivity, credentials, IOS XR compatibility, command execution, JSON writing, and configuration sanitization.

21.2 Test against P23-PCE

--limit "P23-PCE"

status: collected
commands: 8
failed commands: 0

This proved that the collector was not built only for P10. It also worked on the PCE router.

21.3 Concurrent collection

--limit "P10,P23-PCE"

P10.json
P23-PCE.json

Both files were written under the same RUN_ID, proving that one execution can represent a common snapshot of several routers.

21.4 Mixed availability test

--limit "P10,PE1"

P10
  status: collected
  commands: 8

PE1
  status: unreachable
  commands: []

The playbook continued correctly. This test was especially important because it demonstrated tolerance of partial failures.

22. Why the Recap Showed ignored=1

When PE1 was powered off, Ansible could show:

unreachable=0
ignored=1

This can look strange. Ansible detected the problem, but because ignore_errors: true and ignore_unreachable: true told it to continue, the failure was counted as ignored.

Application state must therefore not be interpreted only from PLAY RECAP. The real source of state is the JSON field "status": "unreachable". This is intentional design, not an error.

23. Inspect Evidence

find "automation/evidence/${RUN_ID}/raw" \
  -type f \
  -name "*.json" \
  -print

find searches files or directories; -type f selects regular files; -name "*.json" limits the result to JSON files; and -print displays their paths.

jq . "automation/evidence/${RUN_ID}/raw/P10.json"

jq is a command-line JSON processor. The dot (.) means “display the complete object.”

jq '{
  device,
  status,
  command_count: (.commands | length)
}' "automation/evidence/${RUN_ID}/raw/P10.json"

24. Evidence Security

During testing, we found that two old executions contained sensitive material from earlier tests. The following folders were removed:

RUN-P10-NETOPS-20260724T174938Z
RUN-P10-COLLECT-20260724T175235Z

We then reviewed the remaining evidence. The result was:

No sensitive evidence files detected.

The established rules were:

• Never store credentials in Git.
• Obtain credentials from environment variables.
• Exclude secret lines from the running configuration.
• Review evidence before sharing it.
• Keep automation/evidence/ outside the repository history.

Where Evidence Lives and How It Is Rotated

Runtime evidence remains on the Ubuntu automation server under automation/evidence/<RUN_ID>/raw/. It is created locally by the delegated Ansible task and is never pushed to Git. The run ID makes every collection a self-contained directory that can be reviewed, retained, or removed as one unit.

1. Create one timestamped directory per collection run.
2. Review the JSON files and complete the sensitive-material scan before any evidence is exported.
3. Retain only the runs required by the agreed troubleshooting or audit window.
4. During approved maintenance, remove complete expired RUN_ID directories instead of deleting individual device files and leaving partial snapshots.
5. Export only explicitly approved and sanitized evidence; the raw working copy remains outside source control.

25. Evidence .gitignore

We added automation/evidence/.gitignore. Its purpose is to preserve the directory structure without versioning runtime JSON files.

This prevents Git from attempting to upload:

• Running configurations.
• Management addresses.
• Operational output.
• BGP neighbors.
• IS-IS neighbors.
• MPLS labels.
• Device errors.

Operational evidence must not be part of the source code.

26. Documentation Created

We updated automation/playbooks/README.txt. It now explains:

• The purpose of the directory.
• The collector's function.
• The commands executed.
• Required variables.
• How to run it.
• The evidence path.
• The collected and unreachable states.
• Security considerations.
• Next phases.

Automation without documentation becomes difficult to operate and maintain.

27. Configuration Validator Problem

During the Pull Request, the job CCIE SP Change Pipeline / Validate YAML and Render failed with:

PE4.cfg:
  router bgp block missing vpnv4 address-family
  VRF block missing import route-target

The file contained an incremental change for a VRF and BGP neighbors. It was not the router's complete configuration.

The validator incorrectly assumed:

• If router bgp exists, address-family vpnv4 unicast must exist.
• If vrf exists, an import route target must exist.
• If router isis exists, a prefix-sid index must exist.

Those rules would be reasonable only for a complete configuration. Files under automation/rendered/ are incremental snippets: for example, add a route policy, add two neighbors, change a metric, or add a Prefix-SID. They are not required to contain the full protocol configuration.

28. Fix the Validator

The file was automation/scripts/validate_rendered_config.py.

The validator retained checks for TODO, None, {{ }}, and {% %}. We also added an explicit empty-file check:

if not text.strip():
    errors.append(f"{path}: rendered configuration is empty")

And documented the real model in the code:

# Files under automation/rendered are incremental IOS XR change
# snippets, not necessarily complete device configurations.
# Service-specific completeness checks require the associated change
# intent and must not be inferred from an isolated snippet.

A validator must check the file's real intent, not invent requirements from isolated words.

29. Run the Validator Locally

python automation/scripts/validate_rendered_config.py \
  --rendered-dir automation/rendered

python runs the script with the virtual environment interpreter. --rendered-dir identifies the directory containing generated .cfg files.

Rendered config OK: 2 files

The script searches recursively with args.rendered_dir.rglob("*.cfg") and returns an error when it finds no files, unresolved tokens, or an empty file.

30. Negative Validator Test

A validator must not only accept correct configurations; it must reject incorrect ones. We temporarily created an empty EMPTY.cfg.

Rendered config validation failed:
- .../EMPTY.cfg: rendered configuration is empty

Exit code: 1
NEGATIVE TEST: PASS

Although it may sound contradictory, the negative test passed because the validator correctly rejected the invalid file.

Git, Pull Request, CI/CD, and Cleanup

31. Check Differences with Git

git diff --check
git diff --cached --check

git diff --check finds problems in unstaged changes, including trailing whitespace, other whitespace errors, and conflict markers. git diff --cached --check performs the same review against staged changes.

The documentation used a line containing =======. Git interpreted it as a possible conflict marker because classic markers are:

<<<<<<<
=======
>>>>>>>

We changed the first underline to -------. It was not a real conflict, but git diff --check correctly forced us to remove the ambiguity.

32. Development Branch

We worked on feature/network-validation-engine, protecting main.

The idea is that main receives changes only after tests, review, successful CI, and a Pull Request.

33. Commits Created

Four functional commits were preserved:

Each commit represents one logical unit: inventory, collector, documentation, and correction. This makes changes easier to review, regressions easier to locate, rollback easier to perform, history easier to understand, and versions easier to compare.

34. GitHub CLI

We used gh, GitHub's official CLI. It can manage Pull Requests, checks, workflows, issues, releases, merges, and authentication from the terminal.

gh version
gh auth status

Authentication was associated with the dfonquet user. The stored token must never be displayed.

35. Pull Request Created

We created Pull Request #1 — Add IOS XR network state collection engine with base: main and head: feature/network-validation-engine.

The PR contained four commits and was ultimately merged through 479b3053556cf451fea2046900188c9c5231e7ac. It documented the P10 and P23-PCE tests, concurrent execution, the PE1-offline test, and the sensitive-material review.

36. Initial Check Query

gh pr checks 1

gh is the CLI; pr works with Pull Requests; checks retrieves associated checks; and 1 is the PR number.

1 successful
1 pending
0 failing

One workflow had succeeded, one was still running, and none were failing at that moment.

37. Watch Checks in Real Time

gh pr checks 1 --watch

--watch keeps the command open and refreshes results until completion.

All checks were successful

0 cancelled
0 failing
2 successful
3 skipped
0 pending

Successful checks:

• CCIE SP Lab CI / Offline Vision
• CCIE SP Change Pipeline / Validate YAML and Render

Skipped jobs:

• CML/EVE-NG Deploy and pyATS
• CML/EVE-NG Dry-run
• Production Deploy

These jobs were skipped because the event was a Pull Request. That is correct and safe: a PR should validate the change, but it should not automatically deploy to production or the lab unless the pipeline is explicitly designed to do so.

38. Verify Mergeability

gh pr view 1 \
  --json state,mergeable,reviewDecision,isDraft \
  --jq '{
    state,
    mergeable,
    reviewDecision,
    isDraft
  }'

{
  "isDraft": false,
  "mergeable": "MERGEABLE",
  "reviewDecision": "",
  "state": "OPEN"
}

• gh pr view 1 inspects Pull Request #1.
• --json requests specific fields.
• state can be OPEN, CLOSED, or MERGED.
• mergeable: MERGEABLE means no conflicts block the merge.
• reviewDecision was empty because no required approval was outstanding.
• isDraft: false means the PR was ready, not a draft.
• --jq filters and reorganizes the JSON instead of displaying dozens of fields.

39. Merge the Pull Request

gh pr merge 1 \
  --merge \
  --subject "Add IOS XR network state collection engine"

gh pr merge 1 merges PR #1. --merge uses a traditional merge commit. We chose it to preserve all four commits rather than collapse them into one squash commit. --subject defines the merge-commit title.

Result: Merged pull request.

40. Confirm the Merge

gh pr view 1 \
  --json state,mergedAt,mergeCommit,url \
  --jq '{
    state,
    mergedAt,
    mergeCommit: .mergeCommit.oid,
    url
  }'

{
  "mergeCommit": "479b3053556cf451fea2046900188c9c5231e7ac",
  "mergedAt": "2026-07-24T22:35:58Z",
  "state": "MERGED"
}

.mergeCommit.oid returns the full merge-commit SHA. mergedAt is the UTC merge time. state: MERGED confirms that the PR was merged, not merely closed.

41. Switch to main

git switch main

git switch changes branches; main is the destination. Output: Switched to branch 'main'.

42. Synchronize main

git pull --ff-only origin main

git pull conceptually performs a fetch plus integration. --ff-only allows only a fast-forward and prevents an accidental local merge commit. If local and remote history had diverged, the command would have failed instead of changing history ambiguously. origin is the remote, and main is the branch.

Updating ac3bb3f..479b305
Fast-forward

The local branch moved from ac3bb3f to 479b305.

43. Verify Local State

git status -sb

## main...origin/main

-s requests short format and -b includes branch information. The result means that the current branch is main, it tracks origin/main, no files are modified, and it is neither ahead nor behind.

44. Delete the Local Feature Branch

git branch -d feature/network-validation-engine

git branch manages branches. -d deletes a branch only when Git considers it merged, making it the safe option. -D would force deletion even if the branch were unmerged; we did not use it.

Output: Deleted branch feature/network-validation-engine.

45. Check the Remote Branch

git branch -r | grep 'origin/feature/network-validation-engine'

git branch -r lists remote branches. The pipe sends the left command's output to grep, which searches for text. The result confirmed that the local branch was gone but origin/feature/network-validation-engine still existed.

46. Delete the Remote Feature Branch

git push origin --delete feature/network-validation-engine

git push sends a request to the remote; origin names that remote; --delete requests removal of the named remote branch.

Result: - [deleted] feature/network-validation-engine. This did not delete the merged commits because they were already contained in main through the merge commit.

47. Prune Old Remote References

git fetch --prune

git fetch updates remote information. --prune removes local references to remote branches that no longer exist, such as a stale origin/feature/network-validation-engine. The command produced no output because cleanup completed normally without errors.

48. Final Branch Verification

git status -sb
git branch -a

## main...origin/main
* main
  remotes/origin/HEAD -> origin/main
  remotes/origin/main

git branch -a lists local and remote branches. The asterisk marks the active main branch. origin/HEAD -> origin/main identifies the remote default branch, and origin/main is the remote main branch.

Neither feature/network-validation-engine nor origin/feature/network-validation-engine appeared. Cleanup was complete.

49. Final Repository Result

Local branch:          main
Remote branch:         origin/main
Working tree:          clean
PR #1:                 merged
Feature branch local:  deleted
Feature branch remote: deleted
Merge commit:          479b3053556cf451fea2046900188c9c5231e7ac

Main files incorporated:

• automation/ansible.cfg
• automation/inventories/local/hosts.yml
• automation/playbooks/README.txt
• automation/playbooks/collect-network-state.yml
• automation/requirements.txt
• automation/scripts/validate_rendered_config.py

Lessons, Rerun Guide, and Roadmap

50. What We Learned Technically

50.1 Collect first, interpret later

The collector preserves raw evidence. It does not yet try to decide immediately why BGP is down, why an IS-IS neighbor is missing, or why a label does not exist. It first gathers objective data; parsers and rules come later.

50.2 A partial failure must not destroy the complete process

One powered-off router must not prevent collection from the other 16. That is why the design uses ignore_errors: true, ignore_unreachable: true, and explicit JSON states.

50.3 Validators must understand context

An incremental snippet is not a complete configuration. We cannot assume that every file containing router bgp must also contain VPNv4. Validation must align with the change intent.

50.4 CI does not merely approve; it also teaches

The pipeline failure revealed a conceptual defect in the validator. The correct sequence was:

50.5 Security from the beginning

Security was not postponed until the end. We used credentials through environment variables, a sanitized running configuration, evidence outside Git, secret scanning, and deletion of unsafe historical runs.

50.6 Git as change control

Work was not performed directly on main. We used a feature branch, atomic commits, a Pull Request, CI validation, a merge commit, and branch cleanup. That turns a manual change into an auditable process.

51. Quick Flow to Run the Collector Again

cd ~/netops/CCIE-SP-NetOps-Automation

source automation/.venv/bin/activate

export NETOPS_USER="netops"
read -rsp "NETOPS_PASSWORD: " NETOPS_PASSWORD
echo
export NETOPS_PASSWORD

export RUN_ID="RUN-COLLECT-$(date -u +%Y%m%dT%H%M%SZ)"

ANSIBLE_CONFIG=automation/ansible.cfg \
ansible-playbook \
  -i automation/inventories/local/hosts.yml \
  automation/playbooks/collect-network-state.yml \
  --limit "P10,P23-PCE" \
  -e "run_id=${RUN_ID}"

To run against all 17 routers, remove --limit "P10,P23-PCE":

ANSIBLE_CONFIG=automation/ansible.cfg \
ansible-playbook \
  -i automation/inventories/local/hosts.yml \
  automation/playbooks/collect-network-state.yml \
  -e "run_id=${RUN_ID}"

Scale by Inventory Group

--limit can target an inventory group, not only individual hostnames. The following example collects the four Provider Edge routers defined under pe_routers:

ANSIBLE_CONFIG=automation/ansible.cfg \
ansible-playbook \
  -i automation/inventories/local/hosts.yml \
  automation/playbooks/collect-network-state.yml \
  --limit "pe_routers" \
  -e "run_id=${RUN_ID}"

Replace pe_routers with p_routers to collect the P, Route Reflector, and PCE group. This keeps the same playbook and evidence model while scaling the scenario through inventory structure.

52. Git Commands to Remember

53. Next Platform Phases

The repository documented these extensions:

• Structured parsers.
• Expected-state YAML.
• PASS / WARN / FAIL.
• Pre-change comparison.
• Post-change comparison.
• Network health reports.
• Root-cause analysis.
• Streamlit visualization.
• Controlled AI-assisted analysis.

The next logical evolution is:

{
  "device": "P10",
  "isis": {
    "neighbors_up": 3
  },
  "bgp": {
    "neighbors_established": 6
  },
  "bfd": {
    "sessions_up": 4,
    "sessions_down": 0
  }
}

That state can then be compared with an expected-state file:

P10:
  isis:
    expected_neighbors: 3
  bgp:
    expected_established: 6
  bfd:
    expected_down: 0

And produce:

P10 IS-IS neighbors: PASS
P10 BGP sessions: PASS
P10 BFD sessions: PASS

Verified References and Live Artifacts

The repository, Pull Request, commit identifiers, and merge metadata below were verified against the live public GitHub repository. The command behavior links point to the official project manuals.

Live lab artifacts

• CCIE-SP-NetOps-Automation repository
• PR #1 — Add IOS XR network state collection engine
• Collector implementation commit
• Collector documentation commit
• Incremental-snippet validator fix
• Final merge commit
• Successful CCIE SP Lab CI run
• Successful CCIE SP Change Pipeline run

Official technical references

• Ansible — cisco.iosxr.iosxr_command
• Ansible — ansible.netcommon.network_cli
• Ansible configuration reference
• Git — git diff
• Git — git switch
• Git — git pull --ff-only
• Git — branch listing and deletion
• Git — git fetch --prune
• Git — remote branch deletion
• GitHub CLI — gh pr checks
• GitHub CLI — gh pr merge
• GNU Bash manual — cd, read, source, and export
• GNU Coreutils — date
• GNU Findutils — find
• jq manual
