Building a GitLab CI Pipeline for Network Configuration

A Cisco U style automation lab where a CSV source of truth, GitLab CI/CD, and Ansible turned a manual router change into a repeatable pipeline.

Daniel Fonque Torres July 16, 2026 AUTOCOR / NetDevOps Lab

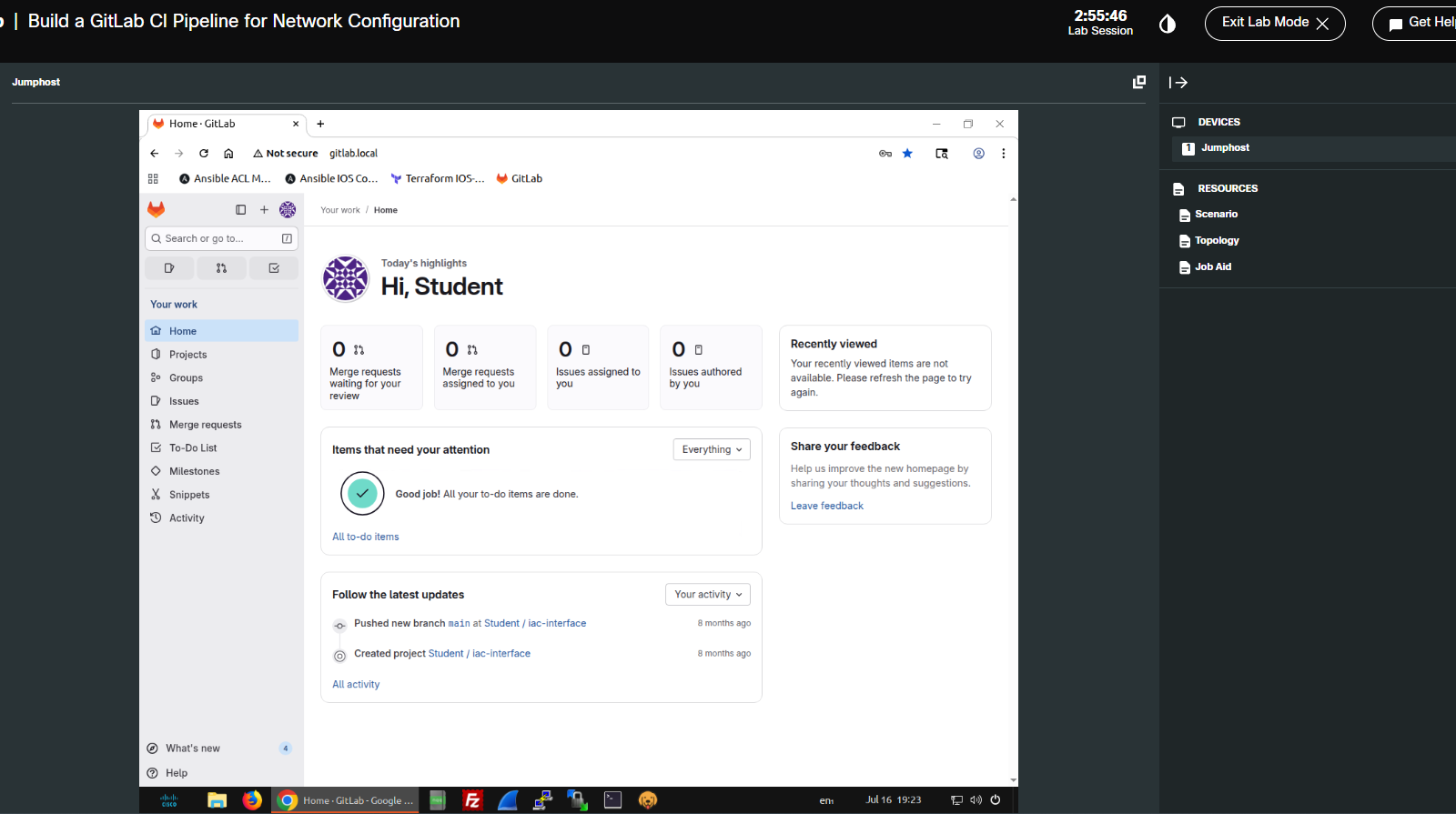

GitLab lab environment opened from the Cisco U jump host — GitLab was the control point for the lab: repository, pipeline, runner, and deployment evidence.

What This Lab Was About

The goal was simple: take a network change that would normally be executed manually with Ansible and move it into a GitLab CI/CD workflow.

Before the lab, the workflow was manual: log into the jump host, move into the right directory, run ansible-playbook, and validate the routers. After the lab, the workflow became versioned and event-driven: update the CSV, commit, push, let GitLab start the pipeline, and let the runner execute Ansible.

CSV change Commit Push Pipeline Ansible Routers Validation

Repository Structure

The project was intentionally small. That made it perfect for understanding the moving pieces of a network automation pipeline without hiding the logic behind a large framework.

Repository files

iac-interface/
|-- interfaces.csv
|-- inventory.yml
|-- manage_interfaces.yml
`-- .gitlab-ci.yml

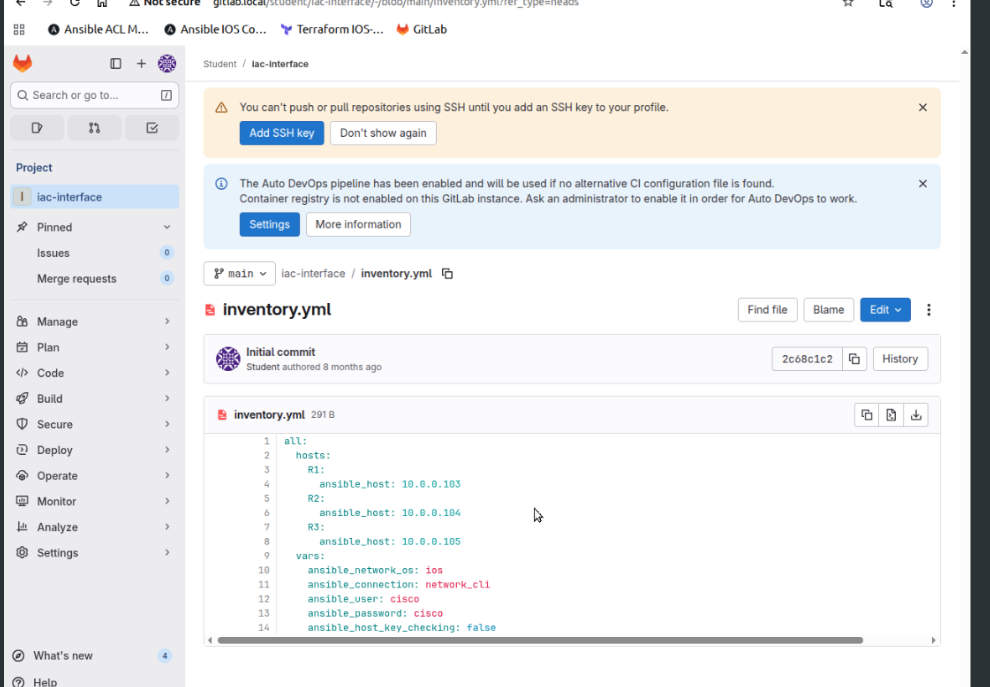

GitLab inventory.yml with Cisco IOS hosts and Ansible connection variables — `inventory.yml` defined R1, R2, R3 and the Ansible network connection settings for the lab.

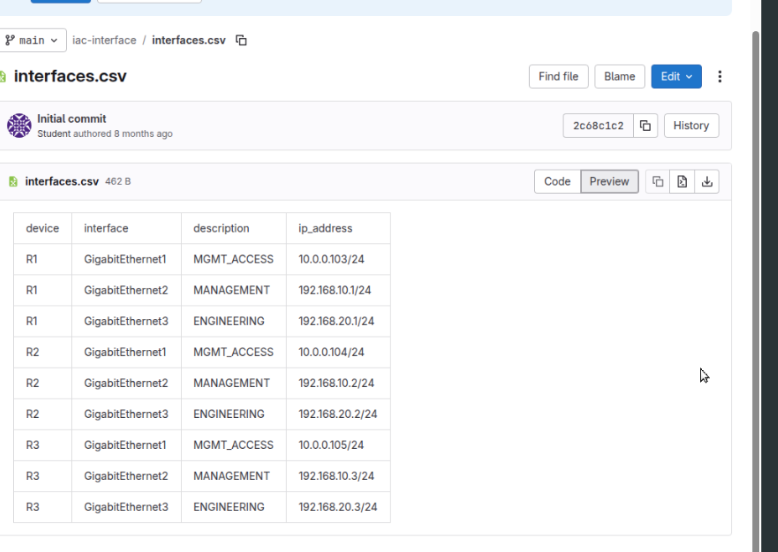

GitLab interfaces.csv preview with device, interface, description, and IP address columns — `interfaces.csv` acted as the source of truth for interface descriptions and IP addressing.

Source of Truth Model

In this lab, interfaces.csv was the desired state. Each row mapped a device, an interface, a description, and an IP address. Ansible read the CSV, filtered rows by inventory_hostname, and applied only the data that belonged to each router.

CSV intent example

device,interface,description,ip_address
R1,GigabitEthernet3,ENGINEERING,172.16.20.1/24
R2,GigabitEthernet3,ENGINEERING,172.16.20.2/24
R3,GigabitEthernet3,ENGINEERING,172.16.20.3/24

Lab note: The inventory used simple lab credentials. In a production workflow, those values should be moved into protected CI/CD variables, a vault, or another secrets-management system.

The GitLab CI Pipeline

The pipeline used a single deploy stage. The runner started a Python 3.12 container, installed Ansible and Paramiko, printed the Ansible version, and executed the playbook against the inventory.

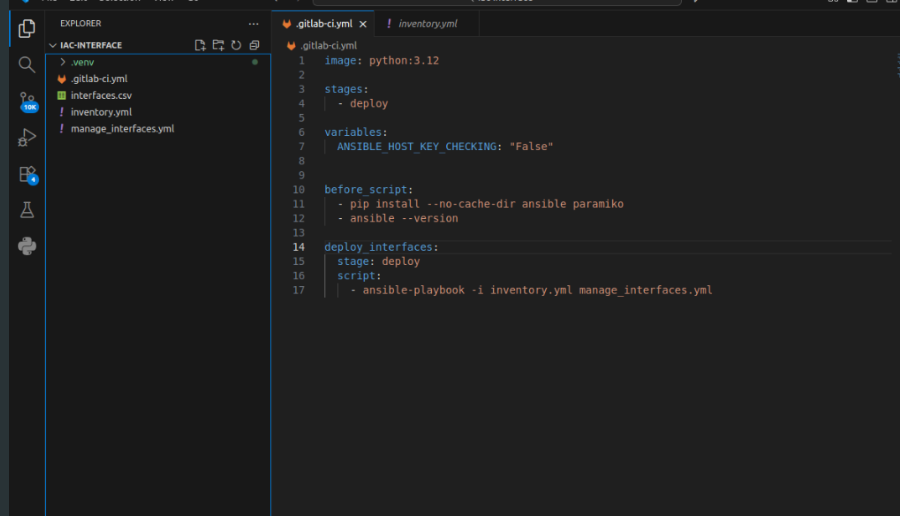

.gitlab-ci.yml

image: python:3.12

stages:
  - deploy

variables:
  ANSIBLE_HOST_KEY_CHECKING: "False"

before_script:
  - pip install --no-cache-dir ansible paramiko
  - ansible --version

deploy_interfaces:
  stage: deploy
  script:
    - ansible-playbook -i inventory.yml manage_interfaces.yml

Commit, Push, Pipeline

After creating the pipeline definition, the next step was to push it into GitLab. The first attempt reminded me of a small but useful lesson: Git cannot add a file that has not actually been saved yet.

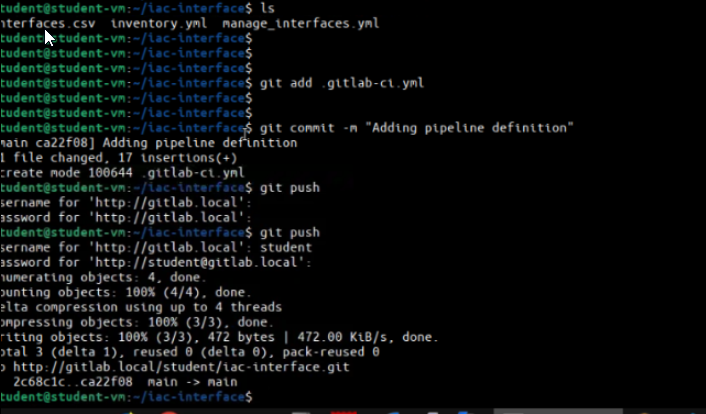

Terminal showing git add, commit, and push for the GitLab CI pipeline definition — The pipeline became active only after the CI file was committed and pushed to the repository.

Later, changing the ENGINEERING subnet in interfaces.csv and pushing the commit triggered the real deployment workflow automatically.

Pipeline Execution

GitLab created the pipeline, assigned the job to the runner, started a Docker executor with python:3.12, pulled the repository, installed the dependencies, and ran the Ansible playbook.

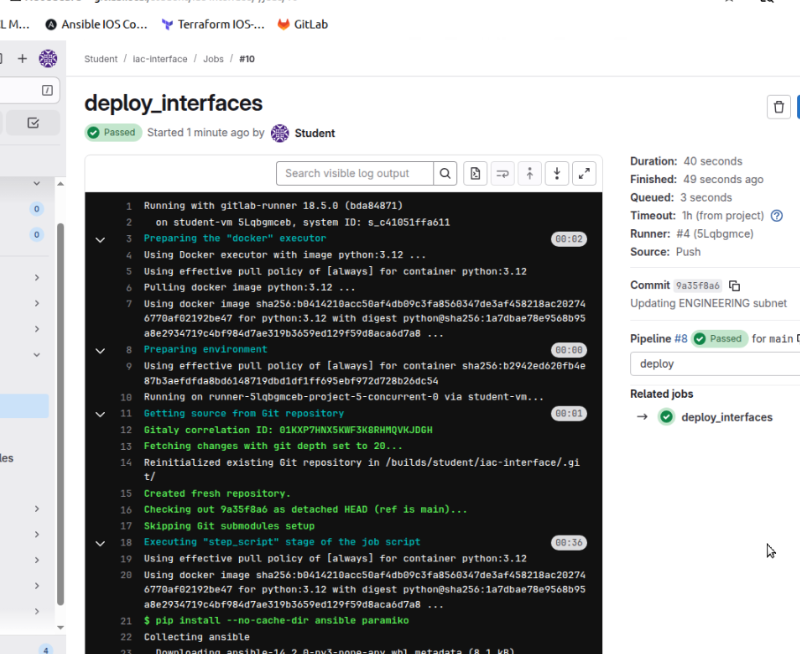

GitLab job log showing deploy_interfaces passed after running Ansible in a Python container — The `deploy_interfaces` job passed and produced the operational evidence for the change.

Routers updated

Unreachable devices

Failed tasks

What Changed on the Routers

The original ENGINEERING subnet was 192.168.20.0/24. The source of truth changed it to 172.16.20.0/24. Ansible detected that the running state did not match the CSV and changed GigabitEthernet3 on R1, R2, and R3.

Expected final state

R1 GigabitEthernet3 172.16.20.1/24
R2 GigabitEthernet3 172.16.20.2/24
R3 GigabitEthernet3 172.16.20.3/24

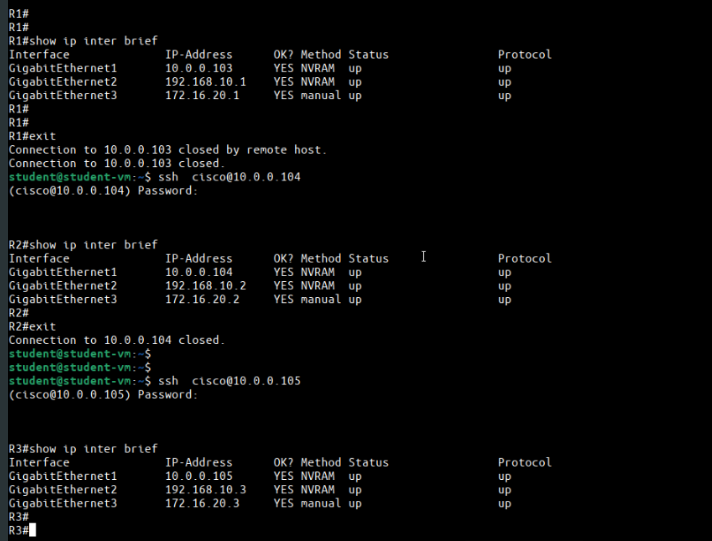

CLI validation showing show ip interface brief output for R1, R2, and R3 after the pipeline — Manual validation confirmed that the source of truth and the real router state matched after the pipeline.

Pipeline Summary

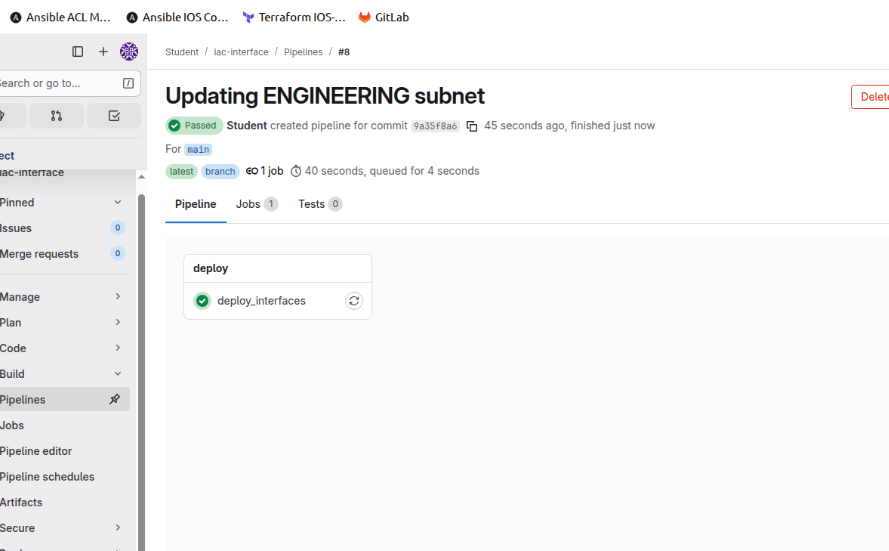

The final GitLab view showed the pipeline as passed. That is the main idea of this lab: a network change became a versioned, repeatable, and traceable workflow.

Bootstrap Mental Model

For AUTOCOR-style study, I would summarize the pipeline like this:

interfaces.csv, inventory.yml, and manage_interfaces.yml define what should happen.

GitLab receives the commit, creates a pipeline, and assigns the job to a runner.

The runner launches a container, installs dependencies, and runs ansible-playbook.

Job logs, recap output, and manual router validation show whether the intended state was reached.

What I Would Improve for Production

This was a lab pipeline, not a production design. For production, I would not go directly from push to deploy. A safer workflow would add more gates.

Validate Lint Syntax check Dry run Diff Approval Deploy Post-check

Move credentials into protected variables or a secrets system.
Pin dependency versions instead of installing latest packages every run.
Add branch rules and manual approval before deployment.
Generate artifacts with command output, diffs, and post-validation evidence.
Add rollback logic for failed deployments.

The important lesson is not only that Ansible changed an IP address. The real lesson is that a network change can be treated as code: versioned, reviewed, executed by a runner, and validated with evidence.
