This lab documents one of the most realistic Service Provider migrations in my CCIE-SP journey: moving the core IGP from OSPF to IS-IS, enabling Segment Routing MPLS, removing LDP after validation, strengthening the RR design, modernizing NAT, and preparing the backbone for SR-TE and PCE.

Daniel Fonque Torres July 11, 2026 CCIE-SP In Progress

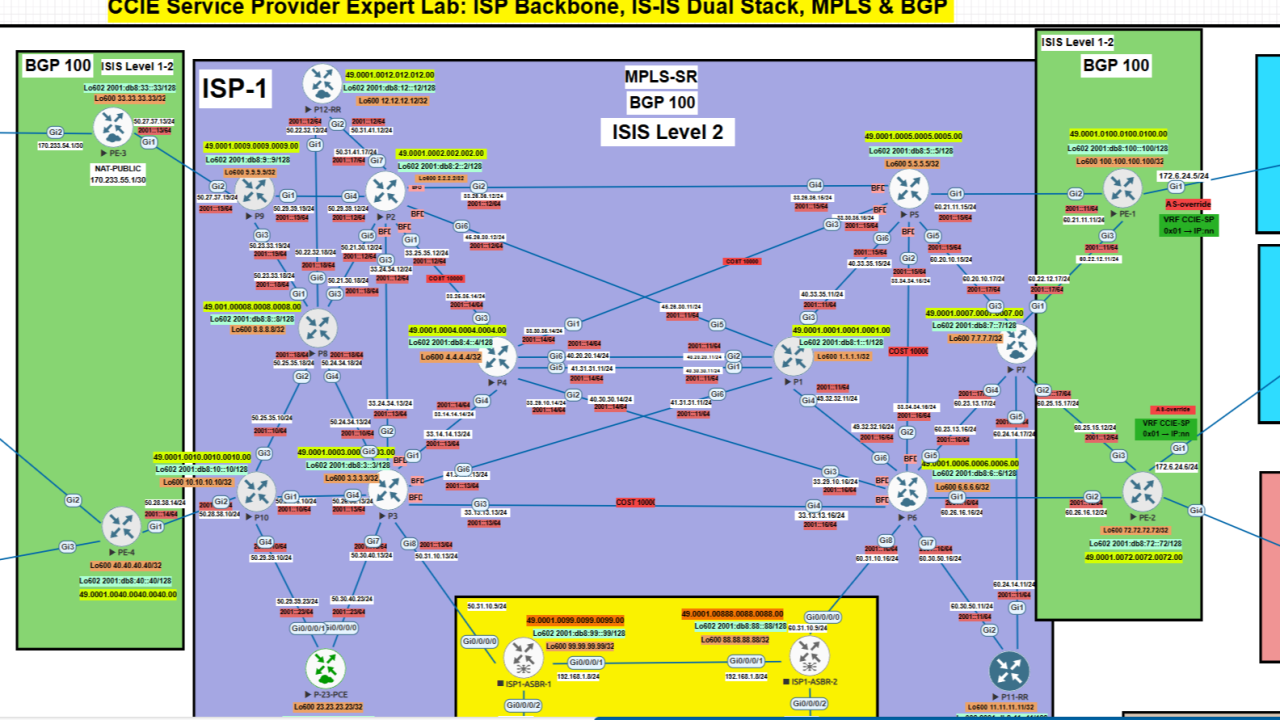

"CCIE Service Provider ISP backbone lab with IS-IS, SR-MPLS, MPLS, BGP, route reflectors, and VRFs"

Quick Migration Map

IGP Migration

Move the backbone from OSPF into an SP-style IS-IS design.

OSPF -> IS-IS

SR-MPLS First

Validate SRGB, SRLB, prefix-SIDs, adjacency SIDs, and LFIB behavior.

SR labels carry the core

LDP Exit

Remove LDP only after SR forwarding is clean and end-to-end traffic works.

No LDP after proof

RR Resiliency

Use BFD, add-paths, diverse paths, and cleaner cluster design.

RR is control-plane armor

Lab Scope and Objective

Over the past days, I completed one of the most realistic Service Provider labs of my CCIE-SP journey. The objective was ambitious but practical:

  • Migrate the core IGP from OSPF to IS-IS.
  • Enable Segment Routing MPLS (SR-MPLS) across the full backbone.
  • Remove LDP cleanly once SR forwarding was validated.
  • Redesign NAT on PE-3 Boundary using a real ISP-style public IP pool.
  • Maintain customer VRF reachability throughout the migration.
  • Strengthen the Route Reflector (RR) architecture using BFD, diverse-paths, and backup paths.
  • Begin preparing the network for SR-TE, PCE, and Traffic Engineering Databases.

Lab Setup

All of this was running in a setup where:

Backbone

P routers run IS-IS Level-2 only.

P = L2-only

Provider Edge

PE routers run IS-IS Level-1-2.

PE = L1-L2

Route Reflectors

Dual dedicated RRs with BFD fall-over and additional-paths.

RR resiliency

Forwarding

100% SR-MPLS label stack after LDP removal.

No LDP

Customers

Customer services live inside VRF CCIE-SP.

MPLS L3VPN

Internet Edge

Dedicated IOS XR router acting as the INTERNET gateway.

XR edge

Services

MPLS L3VPN today, with future SR-TE capabilities.

L3VPN + SR-TE

Production Mindset

Every migration teaches something new when you work in an ISP.

Lab mirrors reality

Working in an ISP means every migration teaches something new. This lab reinforced many of the decisions I face daily in production.

IGP Migration: OSPF to IS-IS

I began by converting the backbone from OSPF to IS-IS. The design follows a classic SP approach:

P routers: L2-only PEs: L1-L2 metric-style wide IPv6 via multi-topology segment-routing mpls microloop avoidance segment-routing
The outage lesson: during migration, my VRF lost connectivity. The root cause was simple and painful: I forgot to temporarily keep LDP autoconfig under IS-IS before SR forwarding fully took over.
Temporary dependency during migration
conf t
router isis CCIE-SP
 mpls ldp autoconfig

Before SR forwarding takes over, LDP must still signal labels. A simple but powerful reminder.

Enabling Segment Routing MPLS

Once IS-IS stabilized, I activated SR-MPLS everywhere. Each router advertised:

SRGB

Global segment space used for prefix-SIDs.

16000-23999

SRLB

Local segment space used for local and adjacency behavior.

15000-15999

Prefix-SID

Stable label tied to loopback reachability.

Loopback -> SID

Adjacency SID

Explicit link-level segment used for traffic engineering paths.

Link -> SID

Validation included:

Validation commands
show isis segment-routing
show isis database verbose
show mpls forwarding-table

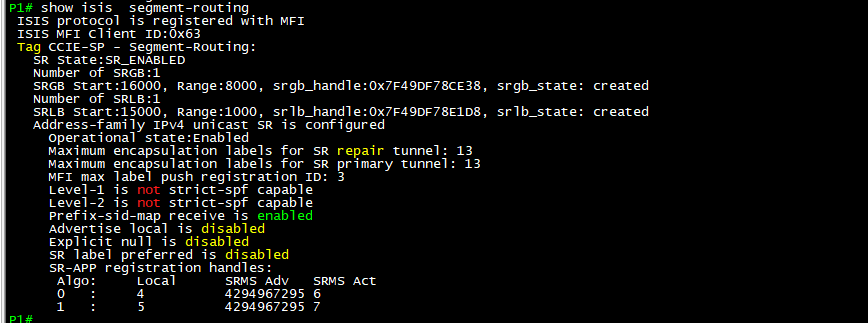

show isis segment-routing output validating SRGB, SRLB, and SR app registration
show isis segment-routing confirms SR is registered and the SRGB/SRLB values are active in the IS-IS process.

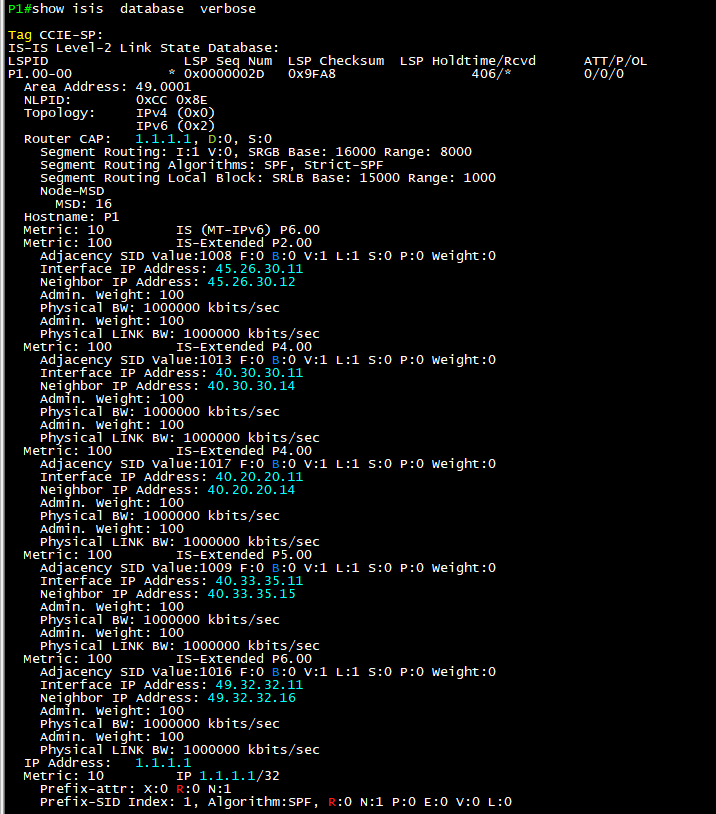

show isis database verbose output showing SR capabilities, SRGB, SRLB, adjacency SIDs, and prefix-SID
show isis database verbose exposes the SR capabilities, SRGB/SRLB, adjacency SIDs, and prefix-SID information inside the IS-IS database.

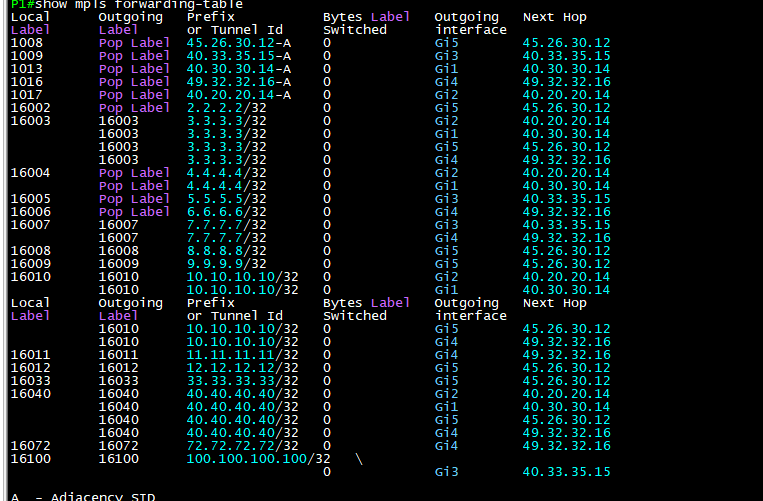

show mpls forwarding-table output validating SR labels and adjacency labels
show mpls forwarding-table validates that the label forwarding plane is populated with SR and adjacency labels before removing LDP.

Decommissioning LDP

With SR forwarding verified, I removed LDP:

LDP cleanup
no mpls ldp autoconfig
no mpls ldp router-id Loopback600
no mpls ip propagate-ttl forwarded
no mpls ldp label allocate ...

Result: a clean LFIB with only SR and adjacency labels.

Modernizing Route Reflector Design

My RRs (RR-Main and RR-Shadow) were upgraded with:

BFD Fall-Over

Faster failure detection for BGP sessions toward clients and peer RRs.

fall-over bfd

Add-Paths

Allows the RR to advertise more path visibility when the design needs it.

additional-paths

Diverse-Path Backup

Backup path advertisement improves control-plane resiliency.

diverse-path

Cluster-ID Redesign

A cleaner RR cluster makes troubleshooting and path behavior easier.

cluster-id cleanup

RR Prefix-SID

RR loopbacks also participate in the SR control plane.

SR for RR loopbacks

This creates real RR resiliency similar to production ISPs.

RR Main

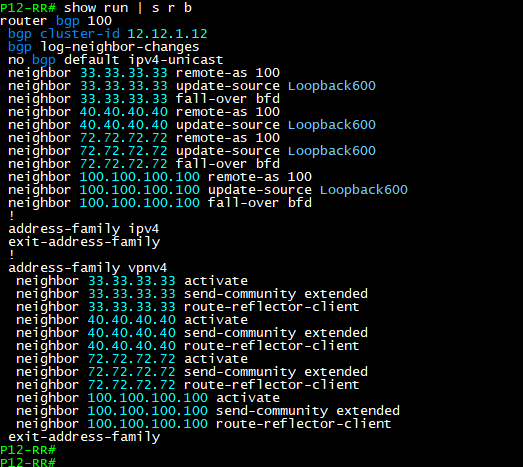

P12 RR Main BGP route reflector configuration with BFD fall-over and VPNv4 route reflector clients
RR Main: P12-RR running BGP 100 with BFD fall-over, route-reflector clients, and VPNv4 signaling.

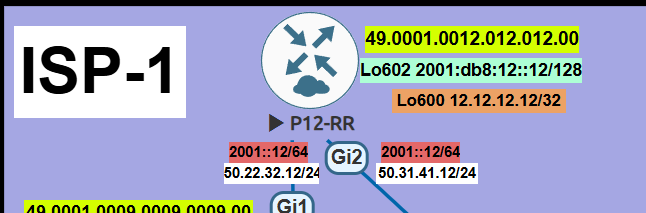

P12 RR Main topology detail with IPv4 and IPv6 loopbacks
P12-RR topology detail with loopback addressing and dual-stack IS-IS reachability.

RR Shadow

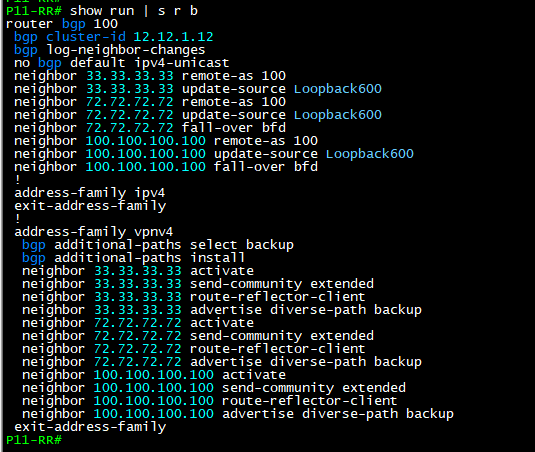

P11 RR Shadow BGP route reflector configuration with additional paths and diverse-path backup
RR Shadow: P11-RR using additional paths and advertise diverse-path backup to improve backup path visibility.

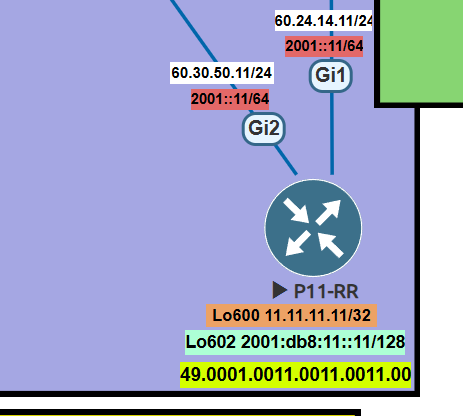

P11 RR Shadow topology detail with IPv4 and IPv6 loopbacks
P11-RR topology detail with loopback addressing and backbone connectivity.

Replacing Legacy NAT with an ISP-Style Public Pool

Originally the PE used a basic GNAT model. I redesigned it to match a real ISP approach:

VRF-Aware NAT

NAT decisions are tied to the customer VRF, not just the global table.

VRF CCIE-SP

Public Pool

The PE uses an ISP-style public range for translation.

Pool -> Internet

Route Resolution

The VRF and global routing tables must agree on return reachability.

VRF -> Global

XR Internet Edge

The Internet router only needs clean static routes back to the customer side.

Return path matters

Final NAT on PE-3

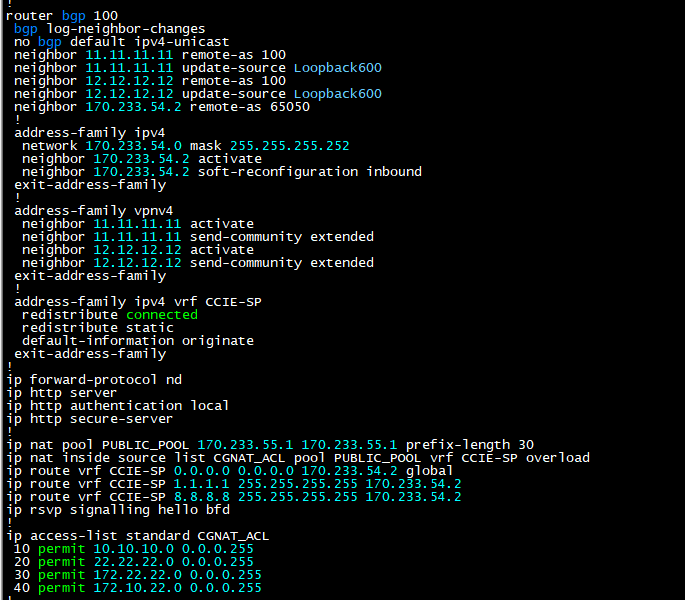

Final PE-3 NAT configuration with VRF-aware NAT, public pool, route resolution, and CGNAT ACL
Final NAT on PE-3: VRF-aware NAT using a dedicated public pool, route resolution, and customer prefixes matched through the CGNAT ACL.

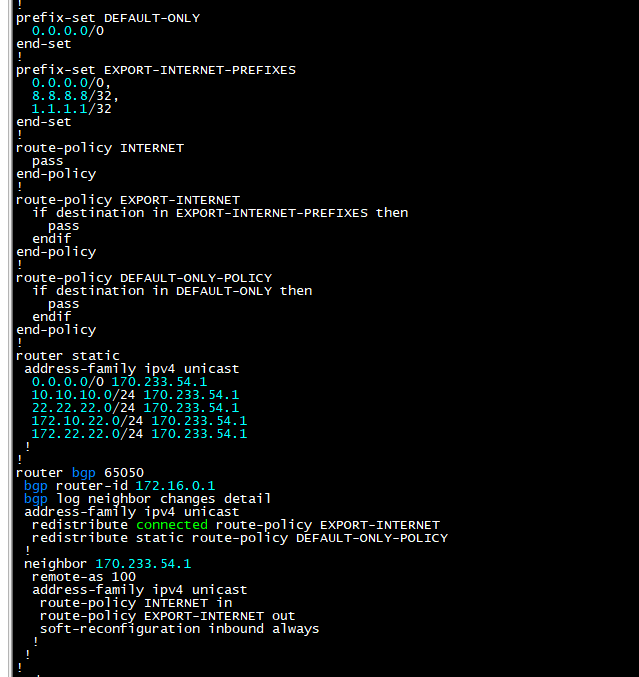

IOS XR Internet router static routes back to customer VRF subnets and BGP policy
The XR Internet router then only needed static routes back to the VRF subnet.

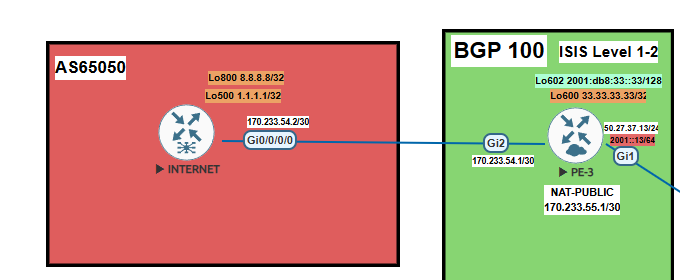

Topology view showing INTERNET router in AS65050 connected to PE-3 with NAT public pool
Internet edge view: PE-3 translates the customer VRF toward the dedicated INTERNET router using the public NAT pool.

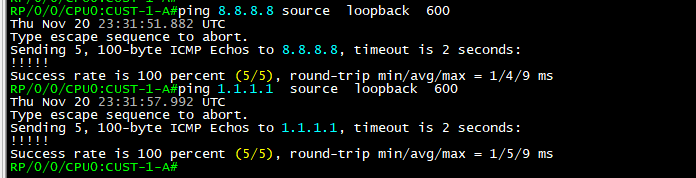

Customer VRF ping test to 8.8.8.8 and 1.1.1.1 with 100 percent success
The result: Customer VRF now reaches the Internet flawlessly.

Final result: customer VRF traffic reached the Internet cleanly, and the design looked closer to what I would expect in a production SP environment.

Phase 6: Preparing for SR-TE and PCE

Before this migration, I used MPLS-TE FRR and RSVP-TE for protection. Now that the domain runs SR-MPLS, the next natural step is to move toward SR-TE and PCE. This is where the lab starts becoming a design platform, not just a feature test.

  • Deploy SR-TE policies.
  • Advertise topology into BGP-LS.
  • Activate external PCE and PCC behavior.
  • Use Binding SIDs for policy abstraction.
  • Use TI-LFA for sub-50ms convergence.
  • Replace legacy RSVP-TE FRR with a modern SR-TE architecture.

Key Takeaways

  • IGP migrations are multi-stage events, not a single command change.
  • SR-MPLS must be validated in the forwarding table before removing LDP.
  • VRF reachability can fail from a control-plane dependency that looks small.
  • RR design matters because the control plane needs resiliency too.
  • VRF-aware NAT is cleaner when the return path is designed intentionally.
  • SR-TE and PCE make more sense once the SR foundation is stable.

RFCs Referenced During the Lab

The biggest lesson was not just that SR-MPLS works. It was seeing how IGP design, label distribution, RR resiliency, NAT, and future traffic engineering all depend on sequencing. In SP networks, the order of operations is part of the design.
